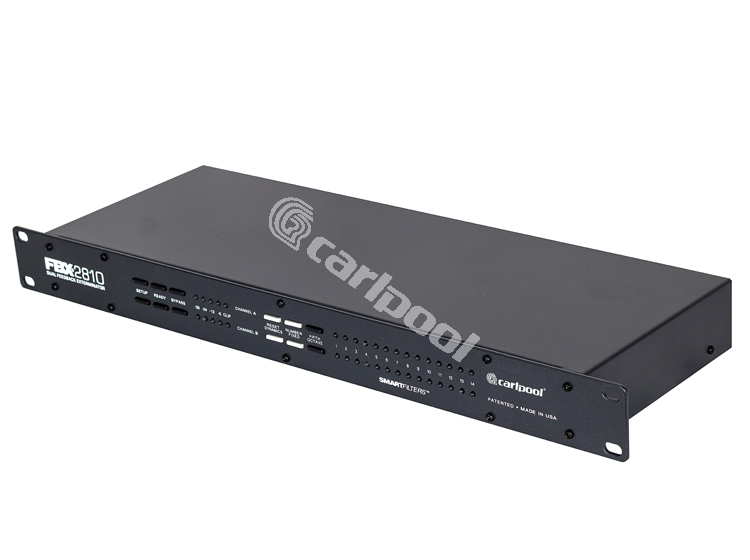

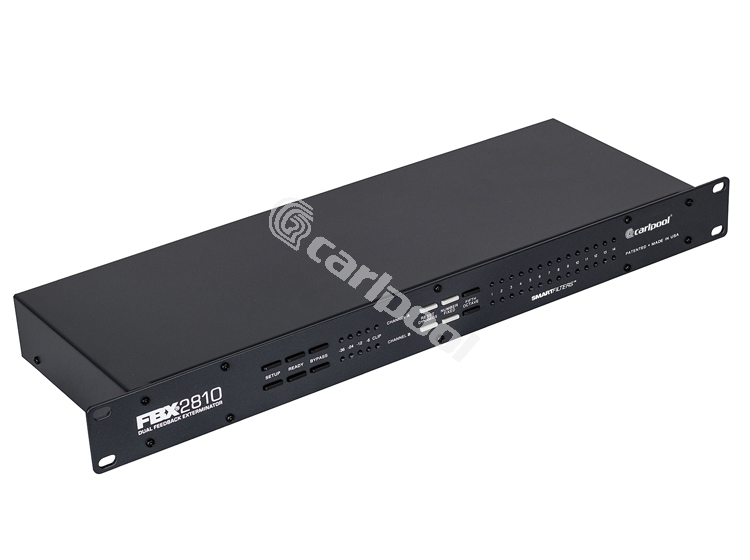

FBX2810

上一页：M-1300 下一页：AFS-2600

Technical Parameters:

■ Input/Output: Maximum input/output signal level: Balance +18dBV peak, unbalanced +12dBV peak value;

Output driver: The unit is connected to the provisions of the implementation of driving a> 600Ω load;

Input impedance: balanced or unbalanced input impedance> 40KΩ, 2 feet high;

■ Output impedance: balanced or unbalanced output impedance 150Ω, 2 feet high;

■ Bypass: true power off bypass;

■ Peak space: generally 4dBV balanced input, maximum peak value is +14dB;

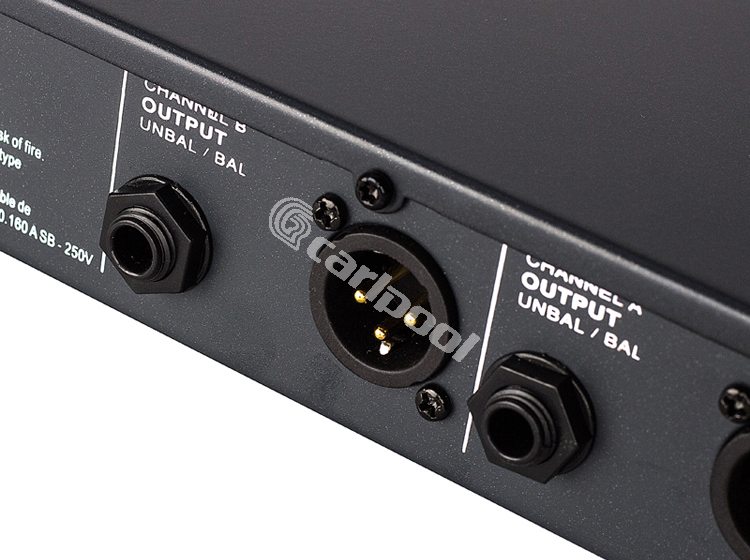

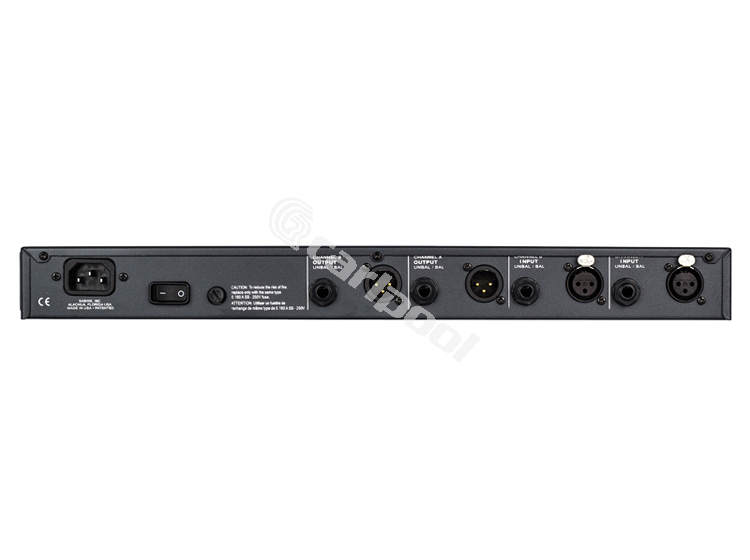

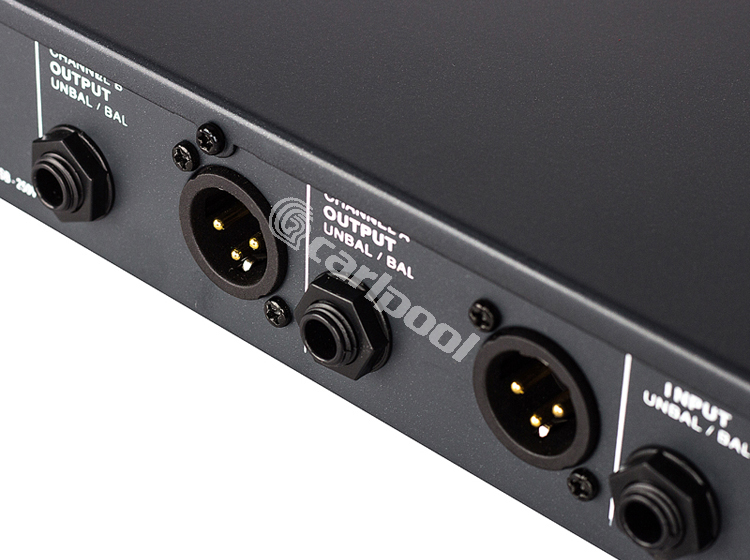

■ I/C Connectors: XLR-3 and 1/4′′TRS

characteristic:

■ Frequency response: 20Hz~20kHz, ±0.3dB;

■ Gain matching: ±0.2dB;

■ Spectrum change: +025dB, 20Hz~20kHz;

■ Letter/Noise - Dynamic Range: >108dB;

Total harmonic distortion: 0.005%, 1kHz; 20Hz~10kH, <0.01%; 10kHz~20kHz, <0.025%;

■ Power supply: 115V, AC: 100V~130V, 50~60Hz;

230V, AC: 200V~240V, 50~60Hz;

■ Fuse: 115V, AC: 0.1A, 10W, 0.16A block fuses;

230V, AC: 0.06A, 10W, 0.16A block fuses fuse;

■ Weight: 3.6kg

Technical application:

■ Quick, quiet adjustment settings;

■ Increase the margin and reduce the noisy noise

■ Accurately identify music and feedback signals;

■ Set the filter point with 1 Hz resolution;

■ Clear and transparent sound - Make your voice clearer and unmodified;

■ Provides greater pre-feedback gain (typically 6-9 dB higher);

■ 24 bit digital resolution;

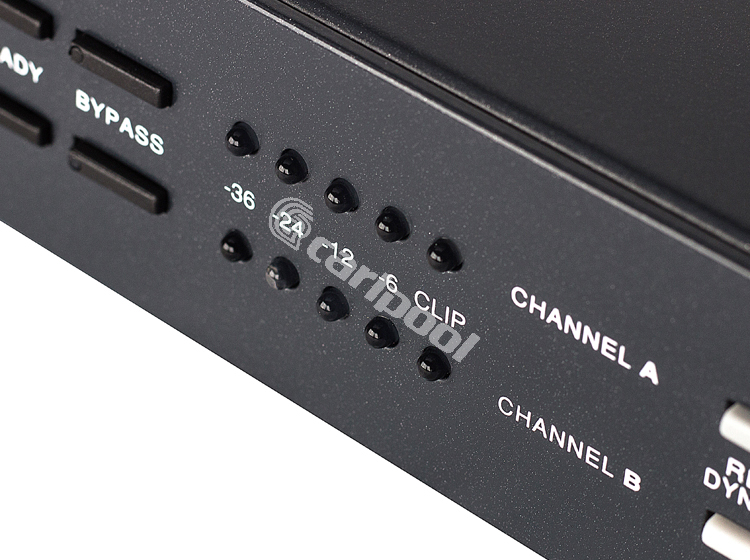

■ Three color LED filter display;

■ 14 filters per channel

■ Flexible filter control

■ Automatically or manually reset the active filter;

■ Input/output connections for XLR card sockets and 1/4" line sockets;

■ Dual channel input/output

filter:

■ Filter: 14 independent digital notch filters per channel, automatically controlled from 40Hz to 20kHz;

■ Filter width: user can control, or 1/10 octave, or 1/5 octave, constant Q value, resolution 1Hz;

■ Time required to find and eliminate feedback: 0.4 seconds, typical value 1kHz;

■ Number of active filters and fixed filters per channel: User selectable, final configuration stored in memory; stored in memory.
